Product Overview

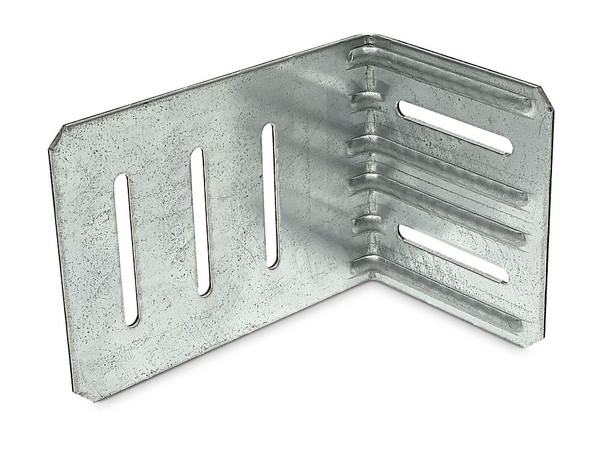

IDCB45.5-KT25 Drift-Clip Bypass Framing Connector (Kit of 25pcs)
The IDCB drift-clip connector is used to secure bypass stud framing to the edge of a slab. The connector will accommodate 1" of lateral drift in each direction and 1" of upward and downward vertical deflection. Tested load values are provided for anchorage to a steel edge angle using #12 x 1 1/4" Strong-Drive XL Large-Head Metal screws.
Key Features:
Horizontal embossments and corner gussets optimize performance in the F2 load direction
Precision-manufactured shouldered screws provided with the IDCB connector are designed to prevent overdriving and to ensure that the clip functions properly
Simpson Strong-Tie "No-Equal" stamps mark the center of the slots to help ensure correct shouldered screw and anchor placement
Material:
97 mil (12 ga.)
Finish:
Galvanized (G90)
Installation:
Use the specified type and number of fasteners and anchors.
In the vertical slots, use the specified number of #14 shouldered screws (included) for attachment to the stud. Install screws to align with the "No-Equal" stamp.
For attachment to a minimum 3/16"- and maximum 1/2"-thick steel edge angle, use Simpson Strong-Tie Strong-Drive XL Large-Head Metal screws (XLQ114B1224). Use one screw centered in each horizontal slot. Install screws to align with the "No-Equal" stamp and back out 1/2 turn.
For fastener installation into steel backed by concrete, predrilling of both the steel and the concrete may be required. For predrilling, use a maximum 3/16"-diameter drill bit.
Ordering Information:
IDCB45.5-KT25 contains (25) IDCB45.5 connectors and (83) XLSH78B1414 #14 shouldered screws
