PRODUCT DESCRIPTION - Click to Enlarge Inset Picture

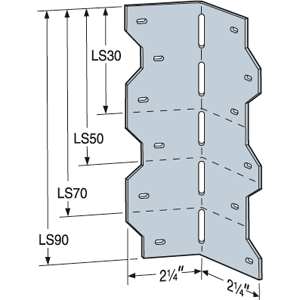

LS50 Skewable Reinforcing Angle
L staggered nail pattern reduces the possibility for splitting.
LS field-adjustable 0° to 135° angles. The GA gusset angles' embossed bend section provides added strength.
L 16 gauge; GA and LS 18 gauge
Use all specified fasteners; see General Notes
LS field skewable; bend one time only
Joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection
Nail the L angle's wider leg into the joist to ensure table loads and allow correct nailing
