MIU5.12/__ I-Joist Hanger (Choose Height: 7-20)
PRODUCT DESCRIPTION - Click to Enlarge Inset Picture

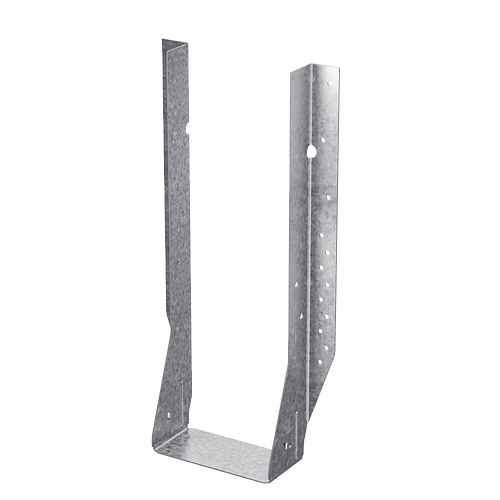

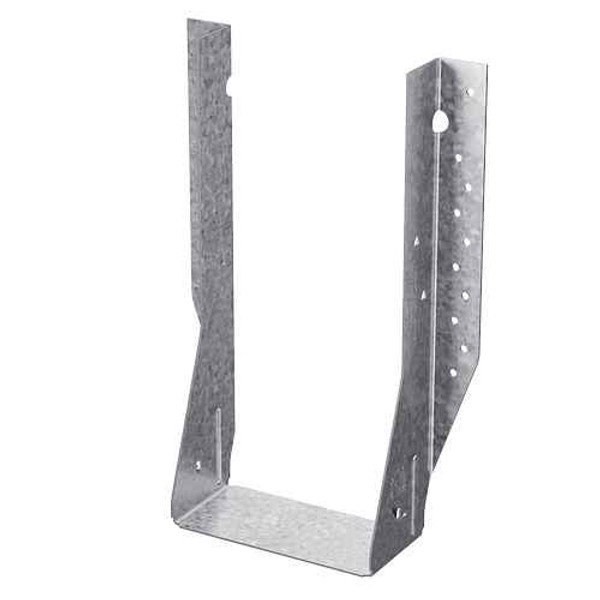

MIU5.12/9 I-Joist Hanger
The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. Installation is fast with the Strong-Grip seat, easy-to-reach face nails and self-jigging locator tabs.
The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle.
IUS 18 gauge; MIU 16 gauge
Use all specified fasteners. Verify that the header can take the required fasteners specified in the table. See General Connector Installation for more information.
IUS fasten hanger to header. Position I-joist into hanger and snap into place. No joist nailing required. Some IUS models have triangle and round header nail holes. To achieve max. download, fill both round and triangle holes.
IUS locator tabs are not structural. They may be bent back to adjust for hanger placement.
IUS for rimboard applications see technical bulletin Hangers on Rimboard Headers (T-RIMBDHGR).
IUS I-joists with web stiffeners or rectangular sections can be used with the installation of (2) 0.148" x 1 1/2" nails into the optional triangle joist nails.
IUS web stiffeners are not required with I-joists when the top flange is laterally supported by the sides of the hanger unless required by the I-joist manufacturer.
Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
MIU add four additional 0.148" x 1 1/2" joist nails for a total uplift load of 975 lb.
IUS add web stiffeners and two 0.148" x 1 1/2" joist nails in the triangle holes for a total uplift of 365 lb.
These hangers cannot be modified. However, these models will normally accommodate a skew of up to 5°. For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
