PRODUCT DESCRIPTION - Click to Enlarge Inset Picture

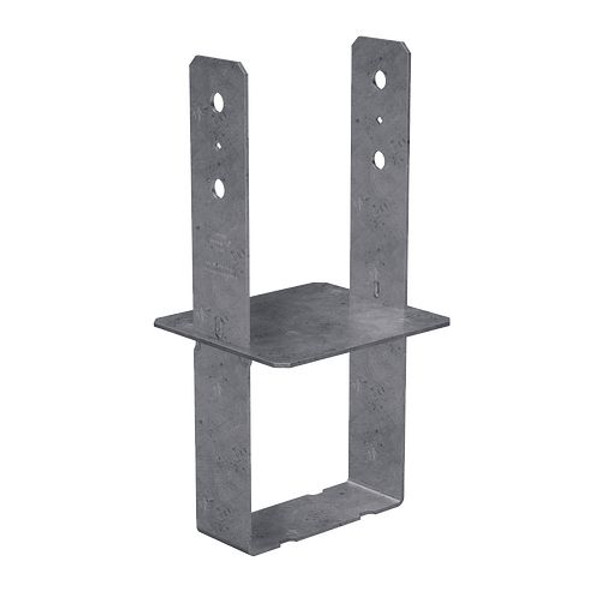

CB9-10.5 Column Base
The LCB/CB column bases help connect posts to the concrete for a broad range of members. The LCB is for 4x4 solid sawn posts, while the CLB bases accommodate glulam and solid sawn members ranging from 4x4 up to 12x12.
Strap: LCB—12 gauge; CB4x, CB5x, CB6x—7 gauge; CB7x and larger—3 gauge
Base: LCB—16 gauge; CB4x through CB9x—7 gauge; CB10x—3 gauge
LCB, CB44, CB46, CB48, CB66, CB68, CB610—galvanized; all other CB—Simpson Strong-Tie® gray paint or HDG. Some models available in HDG or stainless steel
Use all specified fasteners. See General Notes.
For full loads, minimum side cover required is 3" for CB, 2" for LCB.
Install all models with bottom of base plate flush with concrete.
Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
View step-by-step installation instructions in the
Installer's Pocket Guide (S-C-INSTALL).
LCB and CB are available in rough size. Other sizes available for CB specify W1 and W2 dimensions. Consult
Simpson Strong-Tie for bolt sizes and allowable loads.
For ornamental alternatives, see OCB and CBPC products.
