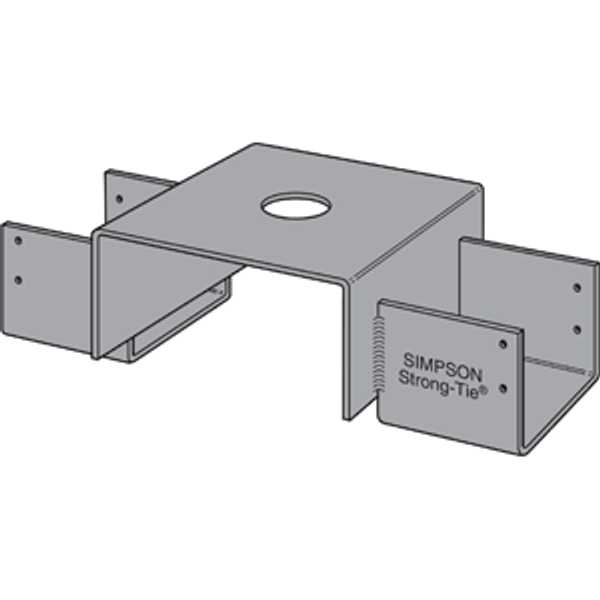

GHD48-6 GHD48-8 Girder Saddle Hanger
A girder-to-foundation wall connection.
Simpson Strong-Tie Gray Paint
Use all specified fasteners; see General Notes.
Insert four 0.162" x 3 1/2" nails into girder.
H = girder height – mudsill thickness. Measurement is from the bottom of the top flange to the top of the seat.
1 1/2" clearance hole accommodates rebar or anchor. This is not required.
GH hangers may be skewed to a maximum of 45°; bevel cut required. The allowable loads are 100% of the table load.
Specify GHD for saddle-style hangers. GHD may not be skewed.
