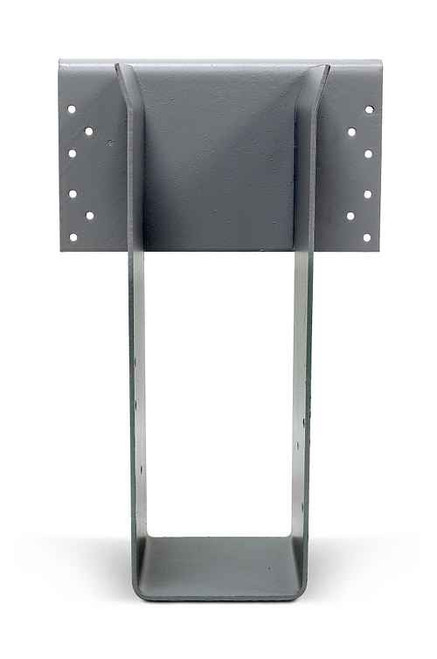

HGLT6 Glulam Beam Hanger
HGLTV hangers are designed for structural composite lumber header applications that require high loads. The top-flange nails are sized and specifically located to prevent degradation of the header due to splitting of laminations.
HGLT accommodate typical structural requirements for timber and glulam beams. Not acceptable for nailer applications. The Funnel Flange™ design allows easy installation of beams.
For heavy loads with a face-mount application, see the HGUS and GU series.
3 ga. top flange; 7 ga. stirrup
Simpson Strong-Tie Gray Paint
Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T- C-MPLYHEADR).
Flatten edge of header to match top flange radius.
Bevel cut the carried beam for skewed hangers.
For hangers exceeding the joist height by more than 1/2", allowable load is 50% of the table roof load.
This series may be used for weld-on applications. Minimum required weld is a 1/4" x 2 1/2" fillet weld at each end of the top flange; see General Instructions for the Installer, note k for weld information.
Weld-on applications produce maximum loads listed. For uplift loads, refer to technical bulletin Top-Flange Hangers Welded to Structural Steel Members (T-C-WELDUPLFT).
HGLTV hangers may be installed on ledgers provided the ledgers are made of 4x solid sawn or 3 1/2" SCL shown in the table below. Thinner lumber must be evaluated by the building Designer.
N54A nails are included with HGLT and HGLS hangers. N54A nails should not be used with structural composite lumber or I-joists; use HGLTV. When installing HGLS on structural composite lumber, use 1/4" × 2 1/2" Strong-Drive SDS Heavy Duty Connector screw in lieu of the N54A nails.
For HGLS loads, shown are per side.
To order HGLS specify H1, H2, W1, W2 and S dimensions (see illustration).
Hot-dip galvanized; specify HDG.
HGLT/HGLTV and HGLS series seats may be skewed to a maximum of 50° or sloped to a maximum of 45°.
For sloped seat, the maximum allowable load for the HGLT/HGLS/HGLTV is 9,165 lb.
For skewed seat, the maximum allowable load for the HGLT/HGLS/HGLTV is 7,980 lb. The deflection at full loading may reach 1/4". For skews greater than 15°, multiply the table uplift load by 0.50.
Sloped and skewed seat combinations are not available for the HGLT/HGLS/HGLTV.
Sloped or skewed seat hangers may not be installed in non-backed header installations.
Top flange may be sloped down to the left or right up to 30°. Reduce allowable loads using the following reduction factor based on linear interpolation (90–α)/90; where α is the angle measure from the horizontal. This reduction is not cumulative with other load reductions.
Top flange may be offset left or right for placement at the end of a header. Minimum seat width 3 1/4". The maximum allowable load is 0.45 for the HGLT/HGLS/HGLTV. No uplift load is available.
For skewed and offset top-flange HGLS/HGLT/HGLTV hangers with inward or outward configuration, the maximum allowable load is the lesser of a) 45% of the catalog load or b) 4,300 lb.
