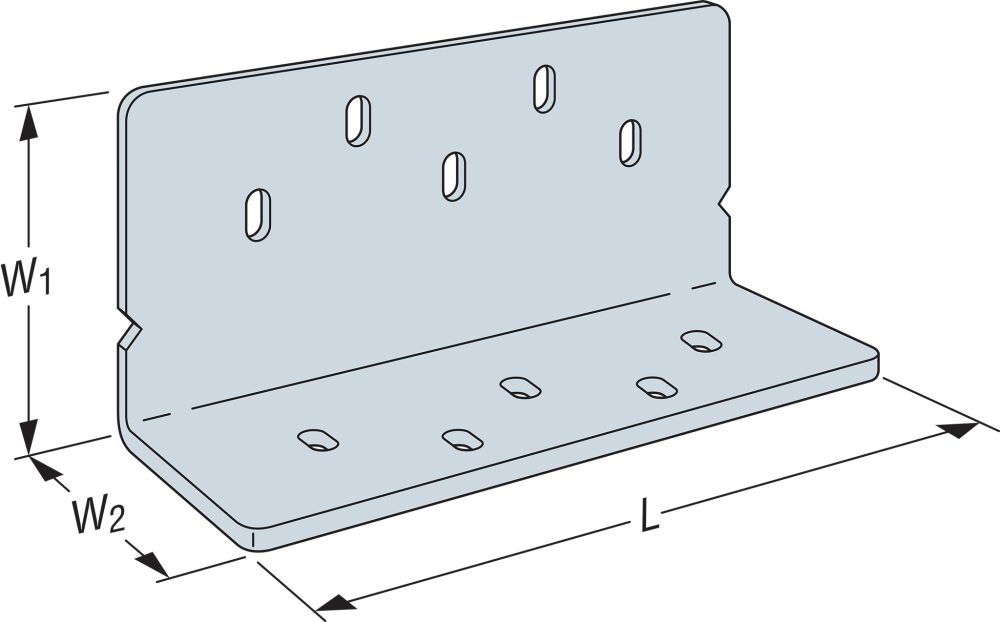

HSLQ37-SDS2.5 Heavy Shear Transfer Angle
The HSLQ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer. The angle offers versatility by allowing up to a 2" gap between the structural members and easy installation with Strong-Drive SDS Heavy-Duty Connector screws that are included with the HSLQ. The HSLQ is manufactured with a gap indication notch to make proper installation easy.
Use all specified fasteners; see General Notes.
Use long leg with notch indicator. (Notch indicates maximum allowed gap.)
Minimum 4x8 wood members are required.
Add filler shims where required in order not to load the angle in any direction other than lateral, as indicated
