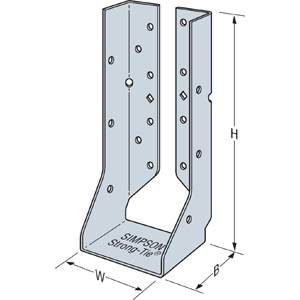

HUCQ210-3SS-SDS Heavy Duty Joist Hanger

HUCQ210-3SS-SDS Heavy Duty Joist Hanger

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

Key Features:

Concealed flanges provide cleaner lines for exposed conditions

HUCQ-series hangers are tested, load rated and code compliant

Strong-Drive SDS Heavy-Duty Connector screws are included

Material:

14 gauge

Finish:

SST300 Stainless Steel

Installation:

Use all specified fasteners; see General Notes.

Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)

HUCQ hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity — refer to technical bulletin HU/HUC Welded onto Steel Members (T-C-HUHUC-W).

Options:

These hangers cannot be modified
