PFS-HKD Strong-Wall Site-Built Double-Wall Portal Kit
PRODUCT DESCRIPTION - Click to Enlarge Inset Picture
PFS-HKD Strong-Wall Site-Built Double-Wall Portal Kit
The PFS double-wall portal frame kit provides all the necessary hardware to build a double-wall portal frame system to meet code-required wall-bracing requirements with narrow wall widths. Simple and quick to install, the PFS is a cost-effective alternative to IRC braced-wall solutions.
Key Features
Narrow wall width - allows builders to maintain narrow return and Designers to maximize portal openings
Easy to assemble - saves time for the installer and increases the confidence of the specifier that it will be installed properly
Cost effective - site-built portal frames are less expensive than prefabricated shearwalls or moment frames
Equivalent wall length - Designers need as much equivalent wall length as possible to economically design structures

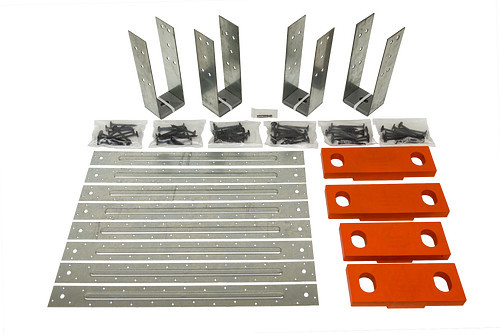

Product Includes
(4) Holdown assemblies
(4) Composite standoff bases*
(8) Moment connection straps
(66) SDW22300 truss-ply screws
(1) 6-lobe T40 driver bit
(1) Installation instructions (T-L-PFSHWIN19)
Extra composite standoff bases included. Use only the base that corresponds to the column width and discard extra base(s).
