PFS-HKS Strong-Wall Site-Built Single-Wall Portal Kit
PRODUCT DESCRIPTION - Click to Enlarge Inset Picture
PFS-HKS Strong-Wall Site-Built Single-Wall Portal Kit
The PFS single-wall portal frame kit provides all the necessary hardware to build a single-wall portal frame system to meet code-required wall-bracing requirements with narrow wall widths. Simple and quick to install, the PFS is a cost-effective alternative to IRC braced-wall solutions.
Key Features
Narrow wall width - allows builders to maintain narrow return and Designers to maximize portal openings
Easy to assemble - saves time for the installer and increases the confidence of the specifier that it will be installed properly
Cost effective - site-built portal frames are less expensive than prefabricated shearwalls or moment frames
Equivalent wall length - Designers need as much equivalent wall length as possible to economically design structures

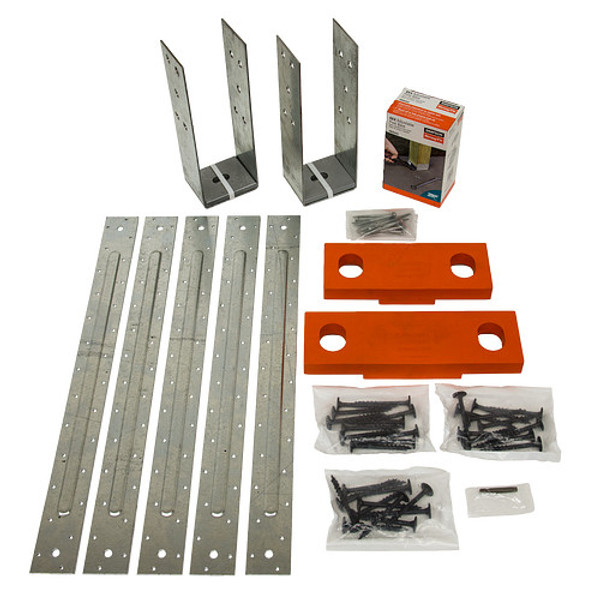

Product Includes
(2) Holdown assemblies
(2) Composite standoff bases*
(5) Moment connection straps
(1) Adjustable post base (ABW44Z)
(33) SDW22300 truss-ply screws
(8) SD9112 Connector screws(1) 6-lobe T40 driver bit
(1) Installation instructions (T-L-PFSHWIN19)
Extra composite standoff bases included. Use only the base that corresponds to the column width and discard extra base(s).
