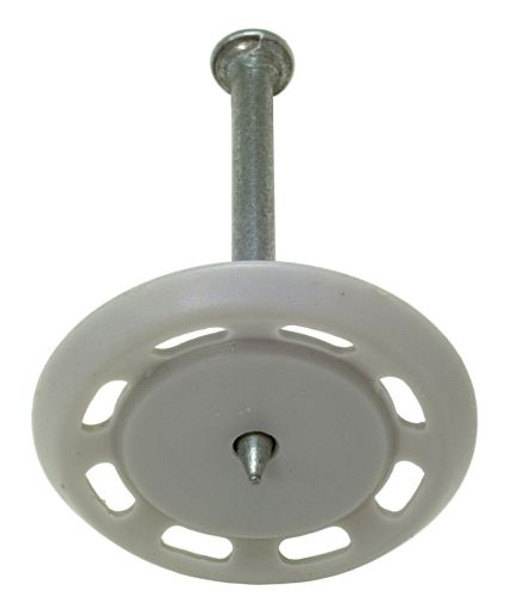

PINWP-100W PINWP-125W PINWP-150W PINWP-175W PINWP-200W PINWP-250W PINWP-300W .300" Headed Fastener with .145" Shank Diameter and 1 3/8" Plastic White Washer
The PINWP is a powder-actuated washered pin designed to fasten rigid insulation board to building structures. The PINWP consists of a 0.300″-headed fastener with a pre-mounted 1 3/8″ flat plastic washer. The PINWP is for high-volume applications and is designed for fastening into concrete and steel.
The minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
Code-listed per ICC-ES ESR-2138
Designed for use with Simpson Strong-Tie powder-actuated tools and compatible with many competitive tools
