WSWH-RTEL18 Strong Wall Anchor Bolt Template (Extended Leg)

Simpson Strong-Tie

Write a Review
Retail Price: $85.29
Sale Price: $63.18
SKU:
wswh-rtel18-g90
UPC:
707392015888
Availability:
Usually ships the same business day
Finish:
G90 Galvanized
Adding to cart… The item has been added

Product Overview

WSWH-RTEL18 Strong Wall Anchor Bolt Template (Extended Leg)

The WSWH-RT high-strength wood shearwall anchor bolt templates are replacing the WSW anchor bolt templates. WSWH accessories are compatible only with WSWH panels; use WSW accessories with WSW panels.

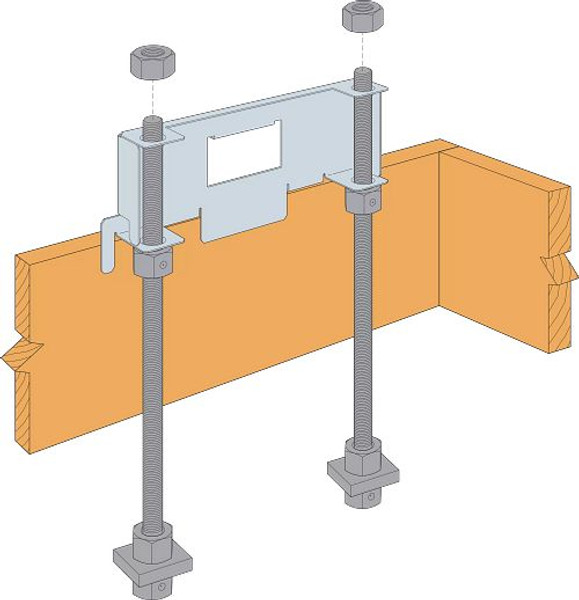

The WSWH-RT are patented anchor bolt templates designed to ensure accurate anchor bolt placement for Strong-Wall® high-strength wood shearwalls (WSWH). These anchor bolt templates simplify installation and greatly reduce the likelihood of voids in the concrete. The templates are reusable and designed to work with the common foundation types used for WSWH panels.

Key Features

Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls

Standard templates are reversible and can be used for interior or exterior applications

Variety of configuration options to accommodate common concrete

foundation types

Applications

RT — standard model used for exterior and interior (reversed) installations at the top of the form

RTPF — panel form model used for installations in panel forms, typically below the top of the form

RTBL — brick ledge model used for brick ledge foundations

RTEL — extended leg model used for installations flush with the inside face of a 2x6 framed exterior wall

Material

14 gauge

Finish

G90 galvanized

Installation

Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
